49.95m McMullen & Wing, Project 1016 photos, specs and timeline

1 event found on Project 1016's timeline.

Subscribe to unlock

About Project 1016

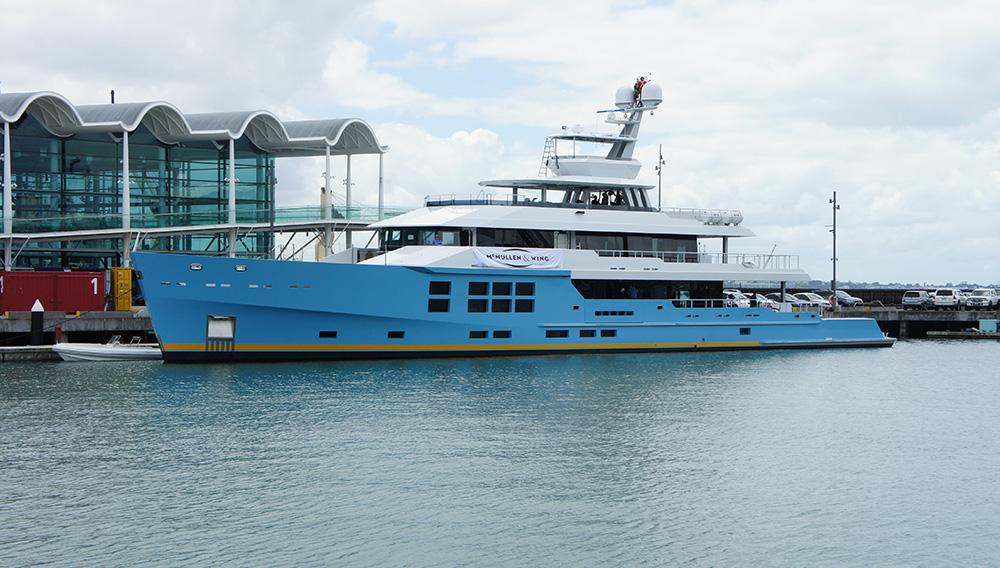

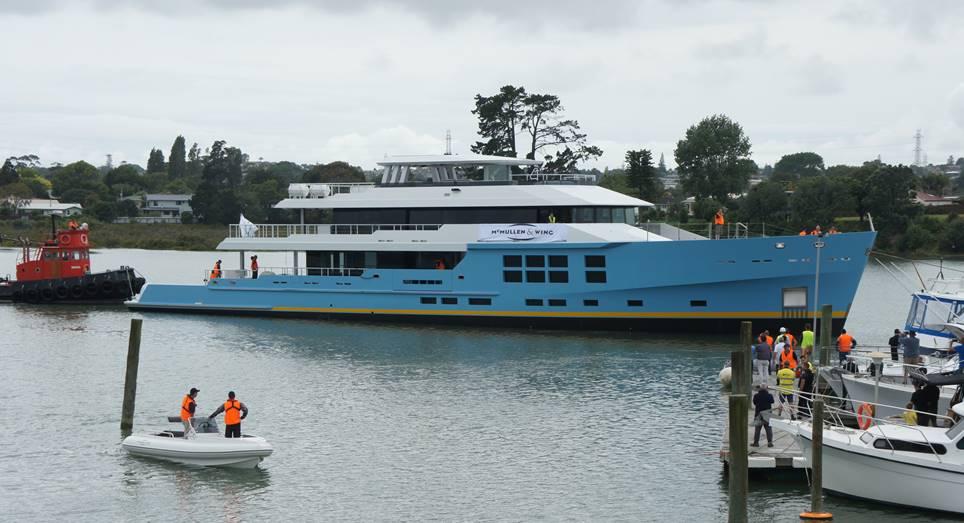

Project 1016 is a 49.95 m / 163′11″ luxury motor yacht. She was built by McMullen & Wing in 2016. With a beam of 9.3 m and a draft of 2.9 m, she has a steel hull and aluminium superstructure. This adds up to a gross tonnage of 498 tons. She is powered by Caterpillar engines of 1050 hp each giving her a maximum speed of 14 knots and a cruising speed of 11 knots. Project 1016's maximum range is estimated at 6000 nautical miles. The motor yacht can accommodate 12 guests in 5 cabins. The yacht was designed by Gregory C. Marshall.

Not available for sale or charter on Yacht Harbour.

Specifications

Structural
Yard :	McMullen & Wing
Type :	Motor yacht
Guests :	12
Crew :	8
Cabins :	5
Length :	49.95 m / 163′11″
Beam :	9.3 m / 30′7″
Draft :	2.9 m / 9′7″
Year of build :	2016
Displacement :	Full displacement

Mechanical
Type of engine :	Diesel
Brand :	Caterpillar
Model :	3508
Engine power :	1050 hp
Total power :	2100 hp
Maximum speed :	14 knots
Cruising speed :	11 knots
Range :	6000 nm

Design
Gross tonage :	498
Hull :	Steel
Superstructure :	Aluminium
Decking :	Teak
Decks :	4
Interior designer :	Gregory C. Marshall
Exterior designer :	Gregory C. Marshall
